Landroid Vision Installation, Setup and Usage
Initial Start-Up, Quick Start Mowing, and Operation of Landroid Vision (All Models)
Starting and Operating Landroid Vision

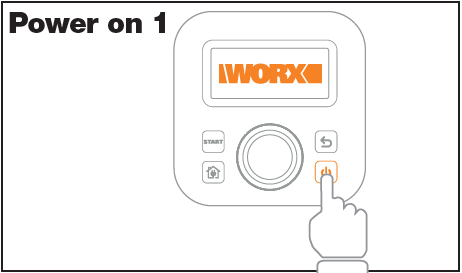

Initial Power-On and PIN Entry
After positioning Landroid Vision in the charging station and allowing it to charge, press and hold the power button until the display lights up.

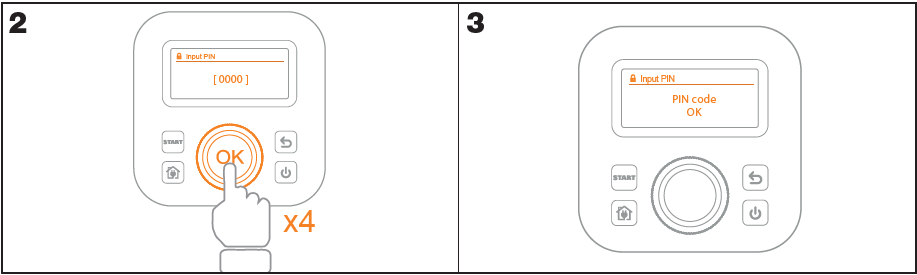

Enter the default PIN code “0000” by pressing the button three times.
The display will show “0000.” Press the button again to confirm.
The display will show “PIN code OK.”
Start the Landroid Vision (WR202E)
Press and hold the power button for 3 seconds until the display lights up.
Press the button three times to enter the default PIN code “0000.”
Press the button again to confirm.
The screen will display “IDLE,” indicating standby mode.
Quick Start Mowing – “Start, OK!”
To start mowing immediately, press the start button, then press the OK button.

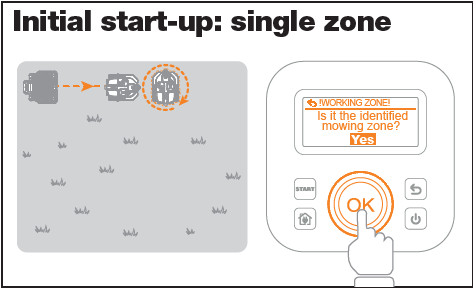

If the screen displays “Is it the identified mowing zone?”, press the OK button to confirm.
Before operation begins, Landroid Vision will emit four beeps as an audio signal.

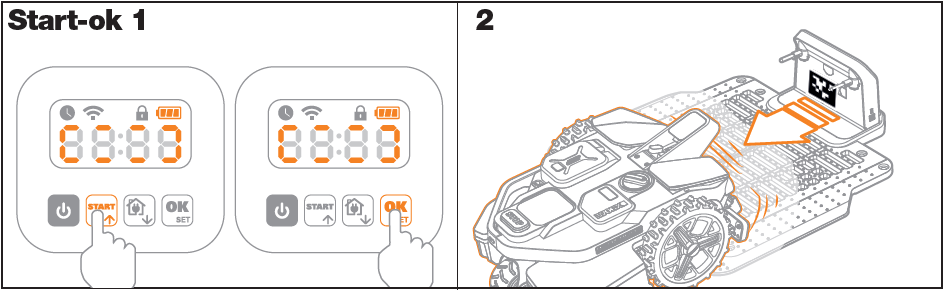

Quick Start Mowing – “Start, OK!” (For WR202E)
To start mowing immediately, press the start button, then press the OK button.

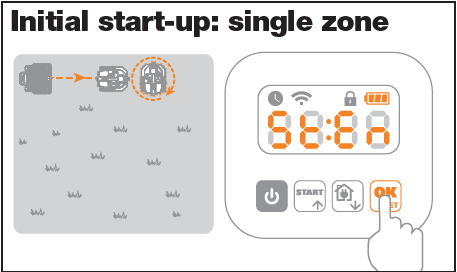

If the screen displays “St:En,” press the OK button to confirm.
Landroid Vision will emit four beeps before beginning operation.
Zone Confirmation Prompts (For WR202E)
If Landroid Vision does not recognize its current location, it will ask the user to confirm the cutting area:
Situation 1: If powered on outside the charging station and the user presses Start and OK, the screen will display “Ar:En.” Press OK to confirm mowing in the current area.
Situation 2: If the mower is lifted for more than 3 seconds outside the charging station and the user presses Start and OK, the screen will again display “Ar:En.” Press OK to confirm.

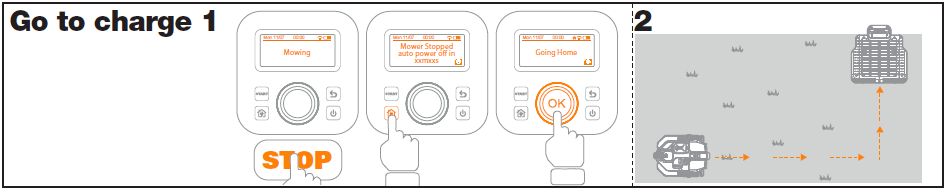

Returning to the Charging Station
To send Landroid Vision back to the charging station, press the Stop button to stop mowing.
Then press the Home button, followed by the OK button to confirm.

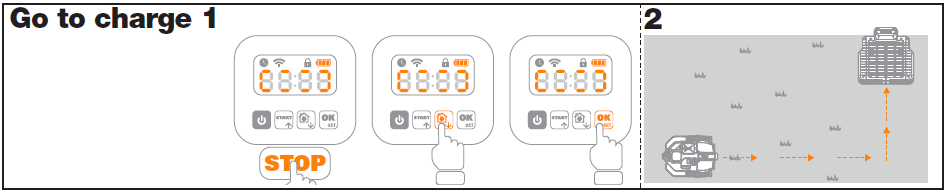

Returning to the Charging Station (For WR202E)
Press the Stop button to stop mowing.
Press the Home button, then press the OK button to confirm.
